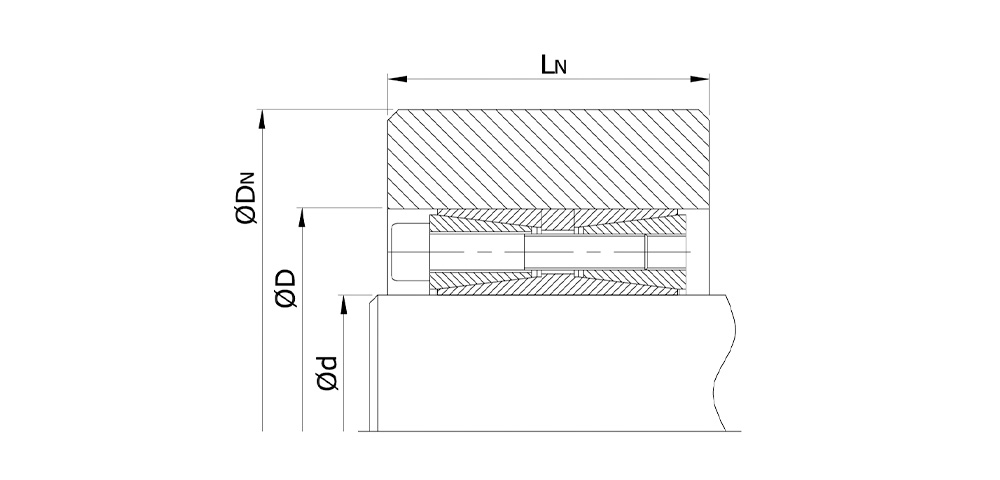

Keyless Locking Assemblies for Bending Loads N7015.0

Specifications

  • Combined Transmission Of High Torques And Axial Forces
This series is available in inch size Shaft Diameter range: 100 mm to 480 mm

Features

  • Five part locking assembly with double taper design
  • Combined transmissions of high Torques, Axial forces and bending loads.
  • No axial displacement of hub during installation
  • Self-centring
  • Easy Mounting & Removal

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
