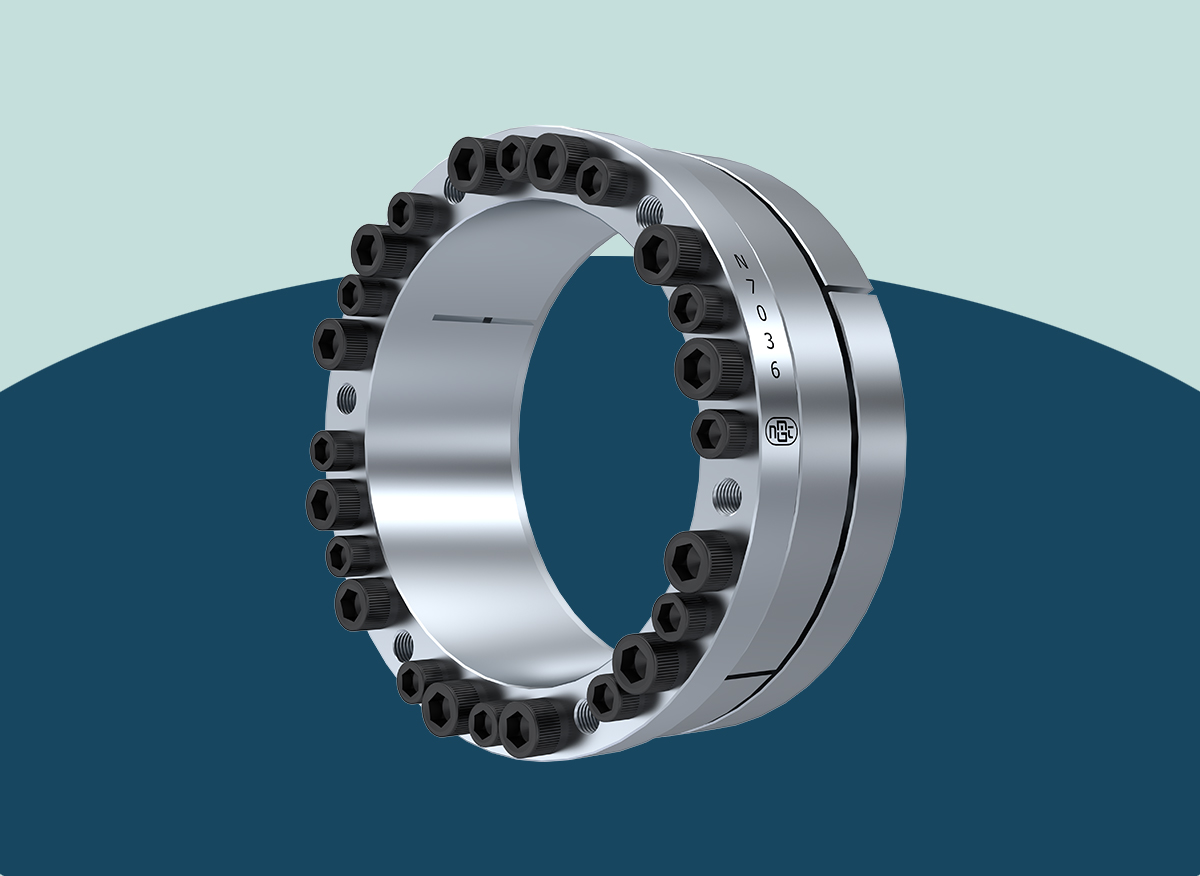

Keyless Locking Assemblies for Bending Loads N7036

Specifications

  • Highest Torque Transmission & Bending Moment Capacity
This series is available in inch size Shaft Diameter range: 30 to 500 mm

Features

  • Three Part assembly with single tapper design
  • Highest Torque transmission & bending moment capacity
  • No axial displacement of hub during installation
  • Self-centring
  • Allows reduced hub width in conveyor pulley – lower material cost and lower machining cost.

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
